DUPERTHAL FILLING AND TRANSFER BARRELS SAFETY CABINET TYPE 90

DUPERTHAL FILLING AND TRANSFER BARRELS SAFETY CABINET TYPE 90

GENEL BİLGİLER

  • Provides maximum safety with 90 minute fire resistance according to the EN 14 470-1 standard.
  • TÜV certified according to DIN EN 14 727 (laboratory furniture standard).
  • User friendliness and guaranteed long service life with TÜV “High Quality” quality certificate.
  • Standard carrier equipment with 200 l leakage collection tank.
  • Internal air suction and air feed channels.
  • All internal and external pieces of the safety cabinet are coated with electrostatic graphite paint, which prevents Ex-Atmosphere formation.
  • The cabinet is grounded at 4 different points according to the TRGS 727 standard.
  • Additional grounding cables are provided for the filling and transfer barrel.
  • Doors close automatically in case of fire.
  • Ergonomic lock system at the handle level.
  • Two-winged door system can be easily opened with one hand.
  • The cabinet can be leveled easily with adjustable feet.

TEKNİK BİLGİLER

  SUPPLY LL 2

Details 1 bottom collection tank with grid for 200 l barrel,
2 ratchet grounding cable and plinth
Dimensions
External [mm]
(width x depth x height)
 895 x 745 x 2080
Internal [mm]
(width x depth x height)
 799 x 595 x 1830
Weight [kg] 444
Storage capacity / surface area approx.
[50 / 60 l]
[200 l]		 2 barrels
1 barrel

ÜRÜN FOTOĞRAFLARI

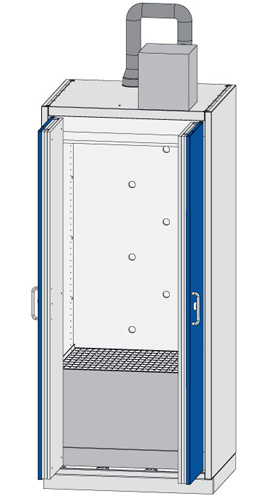

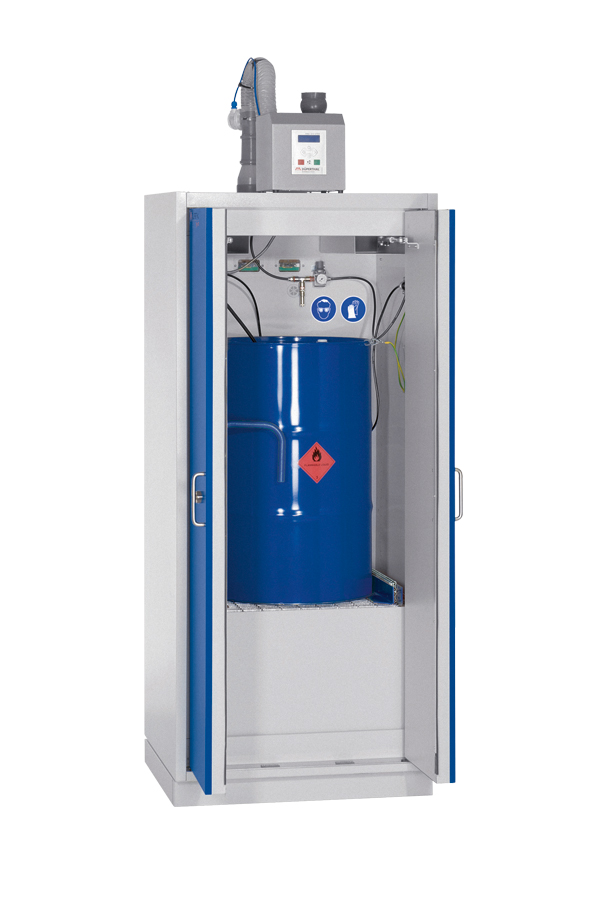

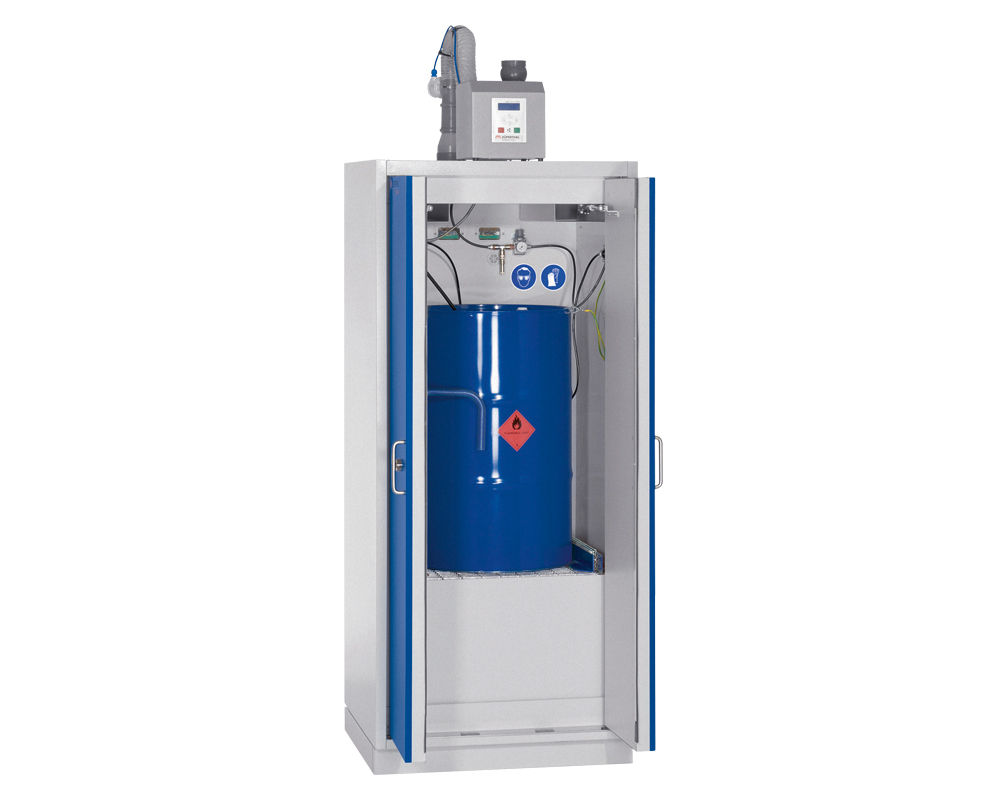

Filling And Transfer Barrels Safety Cabinet Type 90
