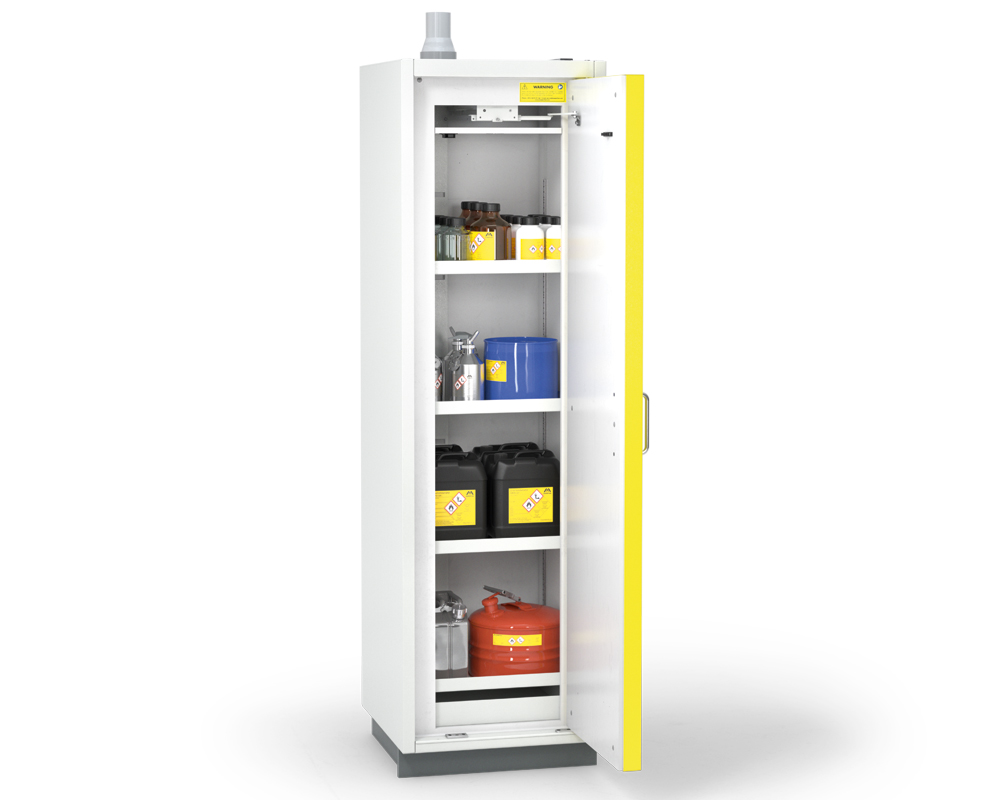

DUPERTHAL FLAMMABLE CHEMICAL SAFETY CABINETS TYPE 90
GENEL BİLGİLER
- Provides maximum safety with 90 minute fire resistance according to the EN 14 470-1 standard.
- TÜV certified according to DIN EN 14 727 (laboratory furniture standard).
- User friendliness and guaranteed long service life with TÜV “High Quality” certificate.
- 4 adjustable shelf systems and 1 bottom collection tray are standard.
- Air suction and air feed channels at every shelf level.
- Each shelf level is grounded according to TRBS 2153 and BRG 132 standards.
- Doors close automatically in case of fire.
- Ergonomic lock system at the handle level.
- Two-winged door system can be easily opened with one hand.
- Can be leveled from the inside or the outside easily with adjustable feet and moved easily with a forklift from the front or the sides.
- European Union GS, CE approved.
TEKNİK BİLGİLER
| CLASSIC standard XL | CLASSIC standard L | CLASSIC standard M | UTS standard ST | UTS standard MT | UTS standard LT | COMPACT standard LL | |
 |
 |
 |
 |
 |
 |
 |
|
| Details | 4 storage shelves, 1 bottom collectionve tray and plinth | 4 storage shelves, 1 bottom collection tray and plinth | 4 storage shelves, 1 bottom collection tray and plinth | 1 bottom collection tray and plinth | 1 bottom collection tray and plinth | 1 bottom collection tray and plinth | 1 bottom collection tray (for every 200 l barrel) and plinth |
| Dimensions | |||||||
|
External dimensions
[mm] width x depth x height)
|
1194 x 612 x 2085 |
894 x 612 x 2085 |
594 x 612 x 2085 |
600 x 493 x 631 |
888 x 493 x 631 |
1100 x 493 x 631 |
895 x 745 x 2080 |
|
Internal
dimensions [mm] width x depth x height)
|
1098 x 469 x 1700 |
798 x 469 x 1700 |
498 x 469 x 1700 |
503 x 363 x 480 |
790 x 363 x 480 |
1003 x 363 x 480 |
799 x 595 x 1200 |
|
Weight [kg]
|
455 | 365 | 265 | 99 | 134 | 161 | 442 |
|
Storage capacity / surface area approx.
|
|||||||
| [400 ml / 11 oz] [1,0 l / 0,26 gal] [1,0 l / 0,26 gal] [2,5 l / 0,66 gal] |
105 spray cans 38 cans 45 lab glass bottles 19 lab glass bottles |
77 spray cans 28 cans 34 lab glass bottles 14 lab glass bottles |
45 spray cans 16 cans 20 lab glass bottles 8 lab glass bottles |
35 spray cans 13 cans 15 lab glass bottles 5 lab glass bottles |
56 spray cans 19 cans 24 lab glass bottles 10 lab glass bottles |
70 spray cans 25 cans 31 lab glass bottles 12 lab glass bottles |
2 barrels [50/60 lt] 1 barrels [200 lt] |
Optional Products
- Movable drawer system,
- Folding cabinet doors,
- Additional storage shelves,
- Smart entrance system that prevents unauthorized access,
- Foot switched pneumatic doors,
- Customized cabinets with various dimensions and features with shelves, drawers and folding doors,
- Push-to-open door system (for under bench cabinets),
- Stainless steel pipes up to 28 mm radius for cable and hose connections,
- Heavy load drawer for barrels (for barrel cabinets).
