GENEL BİLGİLER

Just like benchtops, laboratory sinks are essential components in every laboratory and they must be resistant to the acids, bases and solvents that are used in the laboratory. FRIDURIT® laboratory technologies offer technical ceramics or polypropylene laboratory sinks that are custom made according to your specifications.

Technical ceramics is a high performance material resistant to splashes, spills and similar incidents that are likely in a modern laboratory environment.

Polypropylene one-piece sinks on the other hand are especially suitable for microbiology laboratories due to their seamless surfaces.

FRIDURIT® laboratory sinks can be used in every school, university and industrial laboratory by all customers with a wide variety of color choices and sizes.

TEKNİK BİLGİLER

Test  Criteria Unit Result   Standard Deviation
Density EN 993-1 g/cm³ 2,37 0,00
Cold Pressure Resistance EN 993-5 MPa 159 25
Bending Resistance EN 993-6 MPa 41,3 0,6
Static Flexibility Value EN 993-6 GPa 39 1,3
Heat Conductivity EN 821-2 W/mK 1,57 -
Thermal Diffusion Coefficient DIN 51045-2 10 K a(25-400) : 5,6
a(25-800) : 5,9
a(25-1200) :6,3
Corrosion DIN 52108 cm³ / 50 cm² 8,5 0,3
Temper DIN 101 - 6-7
Stain Resistance EN ISO 10545-14 Category 5
Crack Resistance  EN ISO 10545-11 No cracking on the glaze surface on the ceramics.
Chemical Stability


G: Glazed Plaque


L: Interaction with
Low Acid
Concentrations


H: Interaction with
High Acid
Concentrations


A: Classification, No Effect
EN ISO 10545-13 NH4Cl  GA
NaClO  GA
HCl 3 Vol- % GLA
HCl 18 Vol- % GHA
KOH 30 gr/l GLA
KOH 100 g/l GHA
C6H8O7 GLA
C3H6O3 GHA

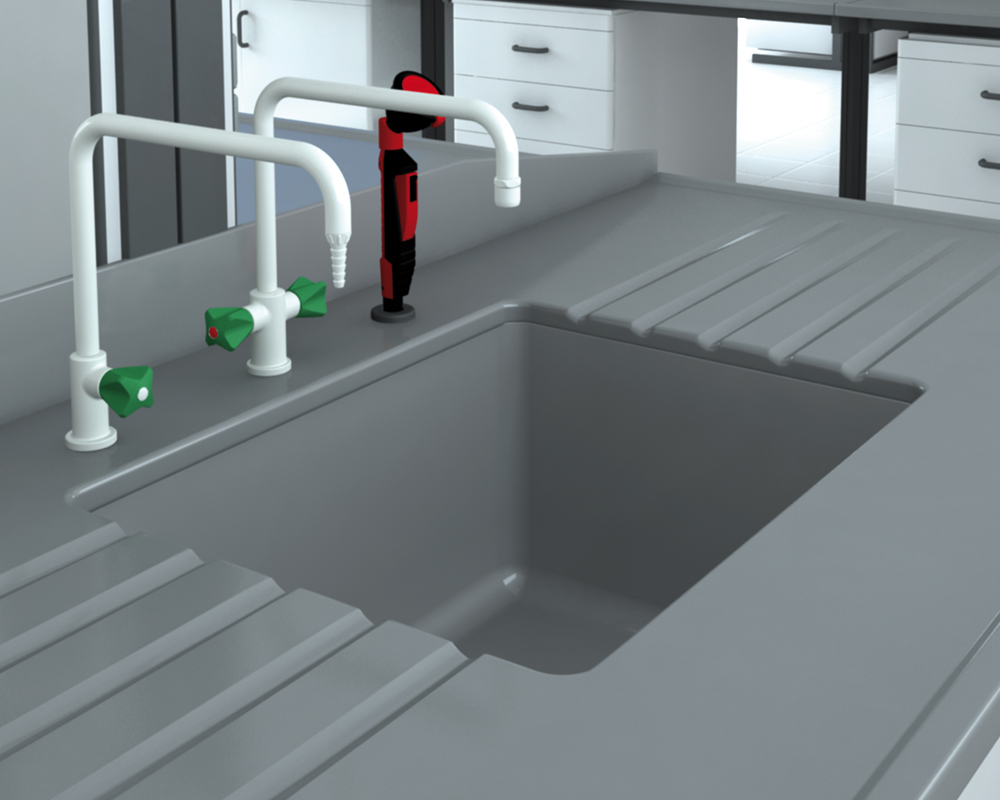

ÜRÜN FOTOĞRAFLARI
