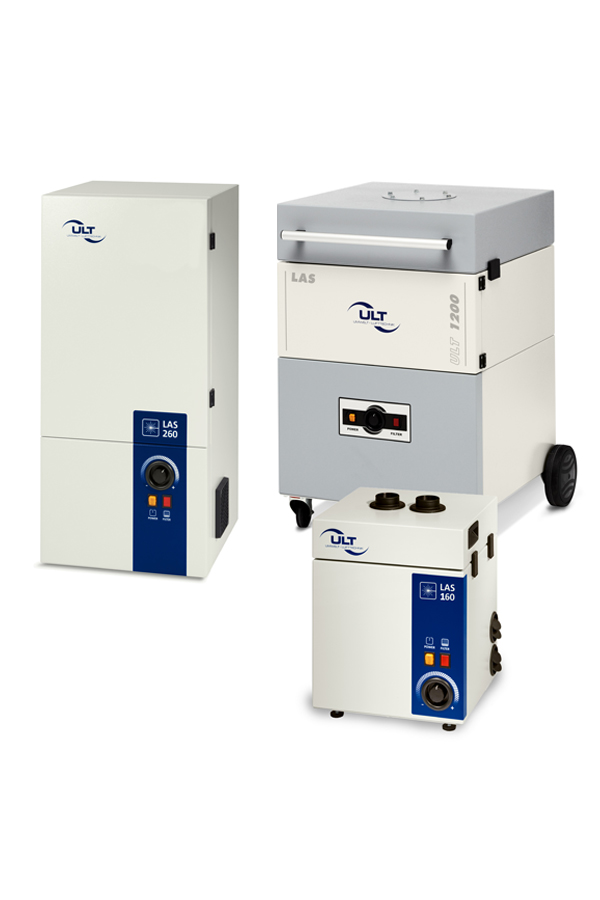

ULT LASER FUME FILTER SYSTEMS LAS SERIES
GENEL BİLGİLER
Lasers are used intensively for advanced and multidimensional marking, shaping and cutting of metal and plastic components. Laser processes are intensively used in printing and medical sectors. Laser fumes generated in these processes constitute a serious risk.
The LAS Series Suction and Filtration Systems protect employees and the working environment with their specially designed gas and vapor decontamination and elimination equipment, as well as reducing operating costs by protecting your equipment from harmful emissions.
Three Different Harmful Effects of Gases and Vapors
The energy input during laser process trigger pyrolytic and oxidation processes and releases a toxic mixture of aerosols, gases and nano-particles.
The very small particles in these mixtures can easily reach alveoli in lungs and have severe consequences. Additionally, the grimy film that forms on the outer and inner parts of your machinery and your products can lead to serious damages.
TEKNİK BİLGİLER
Application:
Laser welding, laser machining, laser cutting, laser configuration, laser marking, laser printing etc.
Specifications:
- Mobile unit with wheels,
- Quiet modular design,
- Easy to use and easy to replace filter design,
- Electrostatic paint coated stainless steel body,
- Front panel control elements,
- On and off button.
Volume Control: Allows gradual adjustment of the suction capacity.
Filter Capacity Gauge: Provides optical monitoring for particle filters.
Technical Specifications:
| Device versiyon | LAS 200 MD.11 | LAS 200 MD.14 | LAS 200 HD.10 | LAS 200 HD.12 | ||
| Max. air flow | m³/h | 190 | 635 | 210 | 220 | |
| Max. suction power | Pa | 3,200 | 3,200 | 20,700 | 22,000 | |
| Min. capacity | m³/h/Pa | 80/1,900 | 250/2,200 | 120/13,000 | 120/12,000 | |
| Dimensions (WxDxH) | mm | 390 x 400 x 610-1,270* (Height according to filter use) |
||||
For more information on suction filter equipment and custom solutions for your needs, contact us.
DÖKÜMANLAR
Lazer Dumanı Arındırma Üniteleri - LAS SERİSİ
